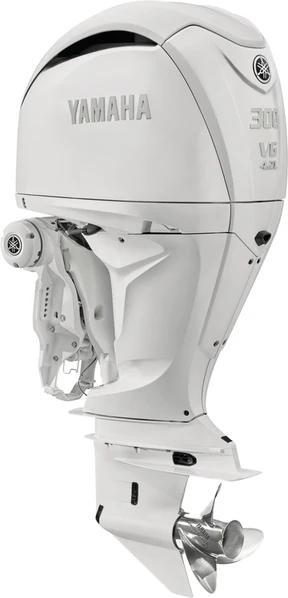

Yamaha F300USB2 Outboard - 30-Inch Shaft | DEC (Digital Electronic Control) | Electric Start | Power Trim & Tilt | Pearl White
Yamaha F300USB2 Outboard - 30-Inch Shaft | DEC (Digital Electronic Control) | Electric Start | Power Trim & Tilt | Pearl White
Back to products
6× 440W Rigid Solar Panels
6× 440W Rigid Solar Panels

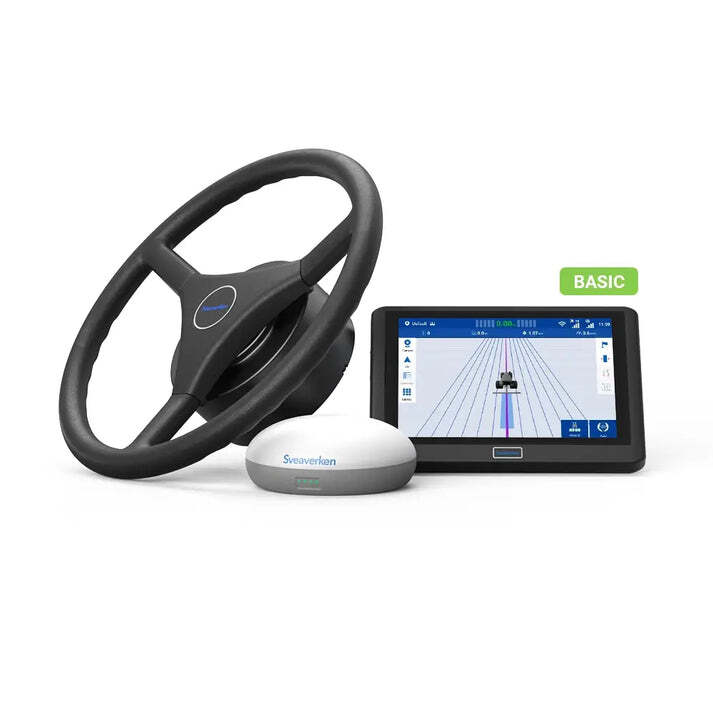

Sveaverken | F100 Auto-Steer System | Width 410mm | Precision Farming GPS Guidance | ±2.5cm Accuracy | 12 To 24V Electric Steering | Horsepower 100 To 400 HP | For Tractor

Compare
Add to wishlist
Category:
Description
Specification Details
Model Sveaverken F100 Auto-Steer System
System Type Precision GPS Navigation & Autopilot for Tractors
Accuracy ±2.5 cm with RTK signal
Electric Steering Wheel Diameter: 410 mm
Power Supply: 12/24 V
Max Torque: 20 Nm (12V) / 30 Nm (24V)
Waterproof & Dustproof: IP65
Display & Control Terminal Size: 275×180×40 mm
Screen: 10.1″ LED, 1280×800 pixels, >500 nits brightness
Power Supply: 9-36 V
Operating Temp: -20°C to +70°C
Storage Temp: -40°C to +85°C
Waterproof & Dustproof: IP65
GNSS Antenna Supports GPS L1/L2, GLONASS L1/L2, BDS B1/B2/B3, Galileo E1/E5b
Size: 162×78 mm
Operating Temp: -20°C to +70°C
Storage Temp: -40°C to +85°C
Waterproof & Dustproof: IP66
Compatibility Tractor Horsepower: 100 To 400 HP
Guidance Line Types Straight, Curve, Pivot, A+, Line Group
U-Turns Basic (Ω shape, Fish-tail), Smart U-Turn
Compatibility Tractors with 12/24 V electric steering systems
Operating Environment Designed for all weather and terrain conditions
