John Deere 5603

The John Deere 5603 is a powerful utility tractor from the 5003 Series, designed to meet the diverse needs of modern agriculture. Launched with a focus on performance and versatility, it features a 99 hp PowerTech 4045 engine and a user-friendly PowrReverser transmission, making it suitable for various tasks such as tillage, planting, and hauling. With a hydraulic system capable of delivering 22.5 gpm and a maximum lift capacity of 3,374 lbs, the 5603 excels in handling heavy implements. Its robust design, combined with operator-friendly features like a standard cab and reliable electrical system, ensures that this tractor is a dependable workhorse for any farming operation.

Key things to know about the tractor

Versatile Utility Tractor: The John Deere 5603 is classified as a utility tractor, making it suitable for a wide range of applications, including tillage, planting, and hauling. Its robust design and powerful engine make it ideal for both small and large farming operations.

Customizable Options: Customers can choose from various optional features to tailor the tractor to their specific needs. This includes different PTO configurations and hydraulic options, allowing for enhanced versatility in implementing various attachments.

Maneuverability: The tractor’s compact dimensions and 4WD capability enhance its maneuverability, making it suitable for navigating tight spaces and uneven terrain. This feature is particularly advantageous for operations in orchards or vineyards where space is limited.

Durability and Reliability: Built with high-quality materials and engineering, the John Deere 5603 is designed for durability and long-term reliability. Its robust construction ensures it can withstand the rigors of daily agricultural tasks, providing peace of mind for operators.

Operator-Friendly Features: The standard cab provides a comfortable working environment, while the intuitive controls enhance ease of use. This focus on operator comfort and efficiency contributes to increased productivity during long hours of operation.

Features

Engine Performance: The John Deere 5603 is powered by a robust PowerTech 4045 turbocharged diesel engine, featuring a 4-cylinder, liquid-cooled design with a displacement of 276 cubic inches. This engine delivers a gross power output of 99 hp, ensuring reliable performance for various agricultural tasks. The engine operates efficiently at a rated speed of 2400 RPM, with a compression ratio of 17.0:1, providing optimal torque and fuel efficiency.

Transmission System: The tractor is equipped with a PowrReverser transmission, offering 12 forward and 12 reverse gears. This power shuttle transmission allows for seamless shifting between forward and reverse without the need for clutch engagement, enhancing operational efficiency during fieldwork. The transmission also features synchronized gear shifts, ensuring smooth transitions while maintaining productivity.

Hydraulic System: The hydraulic system of the 5603 is designed for high performance, with a rated output of 22.5 gallons per minute (gpm). It includes an open center design and supports up to three remote valves, making it versatile for various implements. The maximum lift capacity at the rear hitch is 3,374 lbs, allowing for heavy-duty lifting and towing capabilities.

Power Take-Off (PTO): The tractor features an independent PTO system with options for 540 and 1000 RPM, providing flexibility for different implements. The PTO operates at 540 RPM at 2400 engine RPM, ensuring compatibility with a wide range of agricultural equipment.

Dimensions and Weight: The John Deere 5603 has an overall weight of 7,145 lbs and a wheelbase of 85.7 inches, providing stability and balance during operation. The ground clearance is measured at 15.8 inches, allowing for effective maneuverability across various terrains. The tractor is fitted with Ag tires, with front dimensions of 12.4-24 inches and rear dimensions of 18.4-30 inches, ensuring optimal traction.

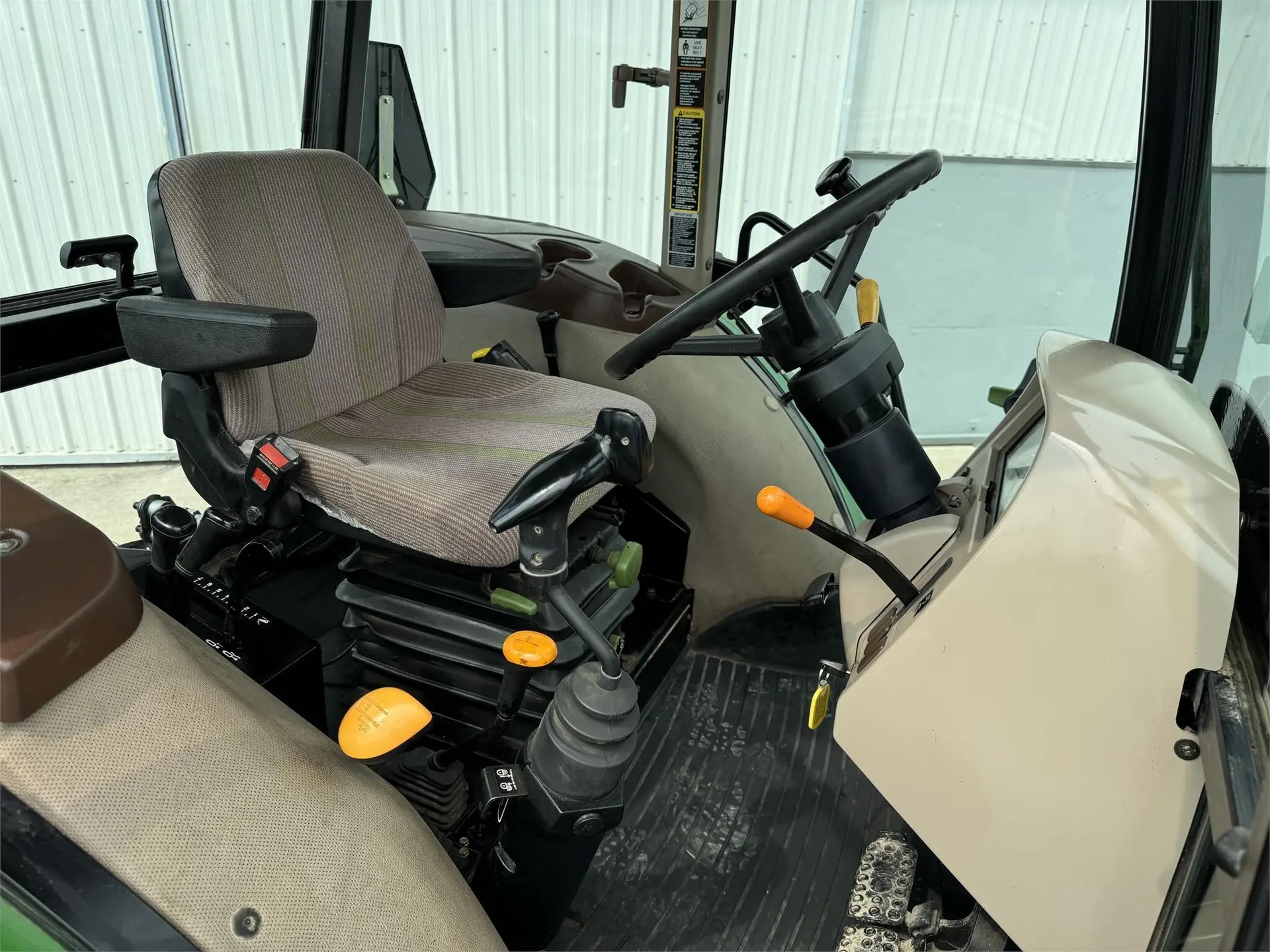

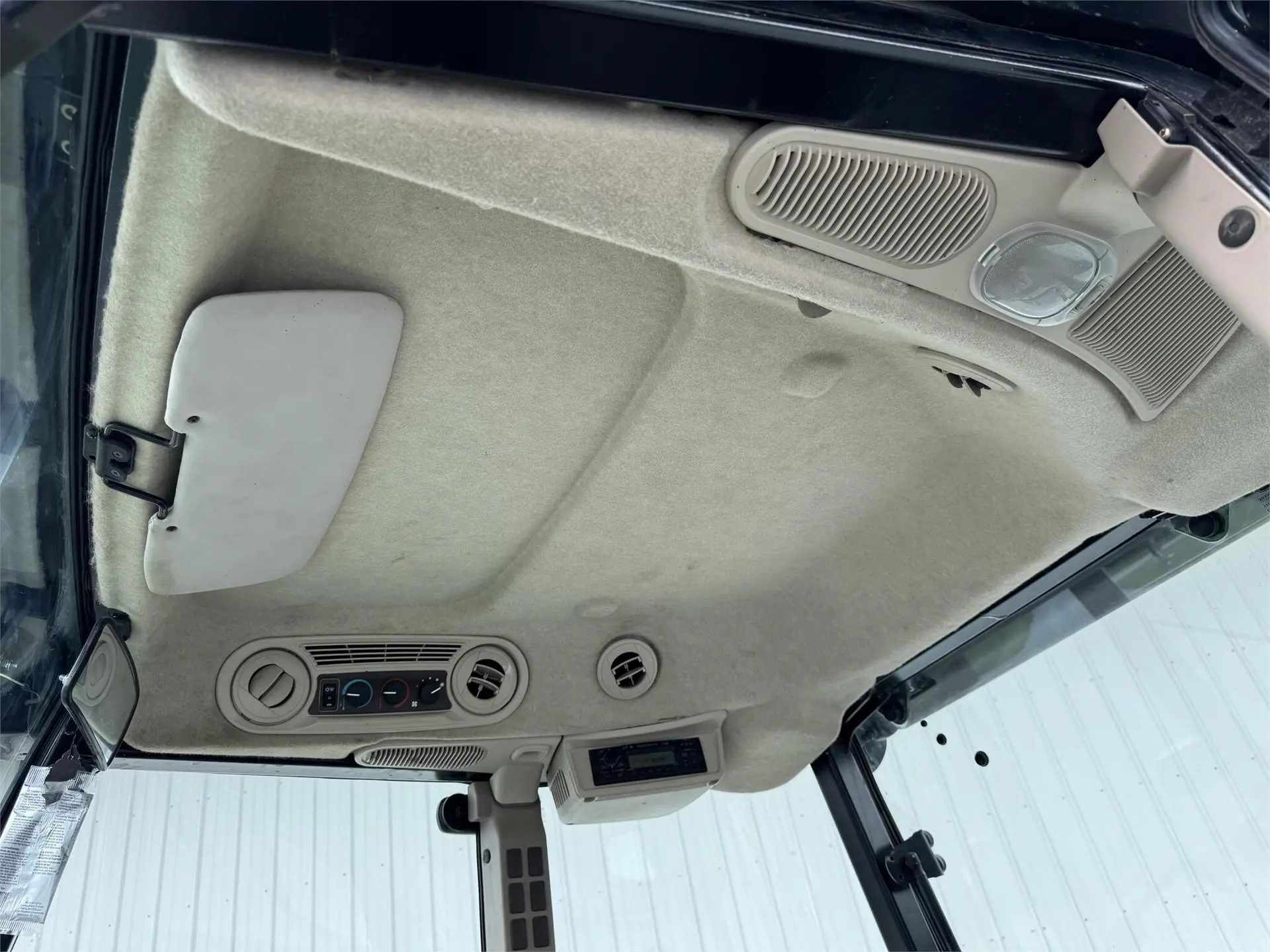

Operator Comfort: The 5603 comes standard with a cab, enhancing operator comfort and protection from the elements. The cab design includes ergonomic controls, allowing for ease of operation during extended working hours. Additionally, the tractor features a wet disc brake system for reliable stopping power.

Electrical System: The tractor is equipped with a 12V electrical system, featuring a 750 cold cranking amp battery and a 120 amp alternator. This robust electrical setup ensures reliable starting and operation of electrical components, enhancing overall functionality.

Fuel Capacity: The fuel tank has a capacity of 33.5 gallons, allowing for extended operation without frequent refueling. This feature is particularly beneficial for long working hours in the field, ensuring uninterrupted productivity.
